Features :

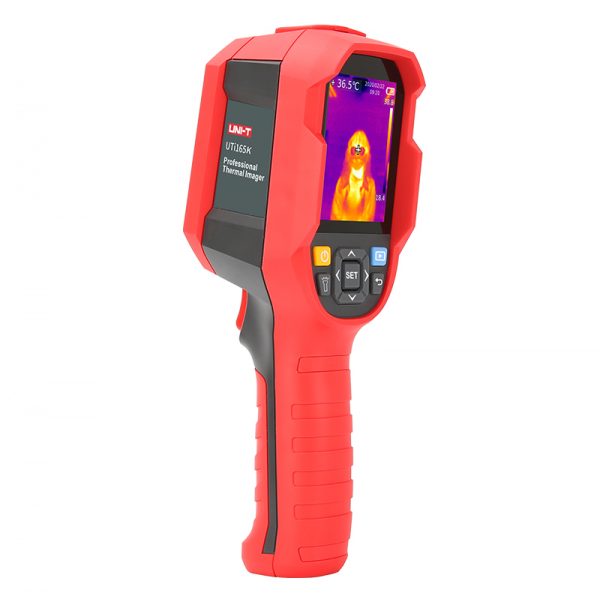

UTi165K Thermal Imager
Features:
* Measurement Range: 30℃ ~45℃(℃ and ℉ switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Contactless Measuring: 15cm-100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output
* Tripod mounting hole(1/4 inch)
UTi165K Thermal Imager
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.
Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question
UTi165K Thermal Imager
Ask a Question
UTi165K Thermal Imager
Description:
UTi165K is a professional thermal imager that supports Realtime Monitoring function from PC software. It can measure temperature at higher accuracy from 1m distance. You can use it as handheld device or hold it in the tripod.
Once reaching the threshold settled, the device will give alarm for low/high temperature alarm, including flushing alarm, LCD Screen Alert and Sound Alarm from PC software.
Specifications:
Model | 165K |
Sensor | Uncooled focal plane |
Temperature range | 30˚C~45˚C |
Resolution | 0.1˚C |
Accuracy | ±0.5˚C @1m |
Minimum measuring distance | 15cm |
Temperature measurement response time | ≤500ms (95% of reading) |
Pixel of thermal imagery | 19200 (160×120) |
Pixel dimemsions | 12μm |
Palettes | Iron red, rainbow, white, black, red, lava, high-contrast rainbow |
Bandwidth of infraed spectroscopy | 8~14μm |
Field of view (FOV) | 56°(H) × 42°(V) |
Instantaneous field of view (IFOV) | 6mrad |
Thermal imaging sensitivity | <50mk |
Frame rate | <9Hz |
Temperature display | Center temperature measurement and high temperature tracking (default) |
Image format | BMP |
Buttons | 10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button |
Image modes | Thermal imagery, digital camera (visible light), fushion |
Temperature measuring point | Besides central point, 3 temperature measuring points can be added |
Visible light | √ |
Resolution of visible light | 640×480 |
Display resolution | 320×240 |
Mixed setting | 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery) |
PC analysis software (PC) | √ |
Real-time image transmission | √ (PC software image projection) |
Data communication | Type-C USB |
Auto power off | Selectable (5min, 10min, 30min), 30min auto power off (default) |
Service time | ≧6 hours |
Charging time | ≦5 hours |
Charging voltage/current | 5V/2A |
Image storage | Micro SD card |
General Characteristics | |
Power | A single Li-ion 3.7V/5000mAh 26650 battery |
Display | 2.8″ TFT LCD |
Product color | Red & grey |
Product size | 236mm x 75.5mm x 86mm |
Standard accessories | Manual, Type-C USB cable, 16GB TF card |
Standard carton gross weight | 2.2kg |
