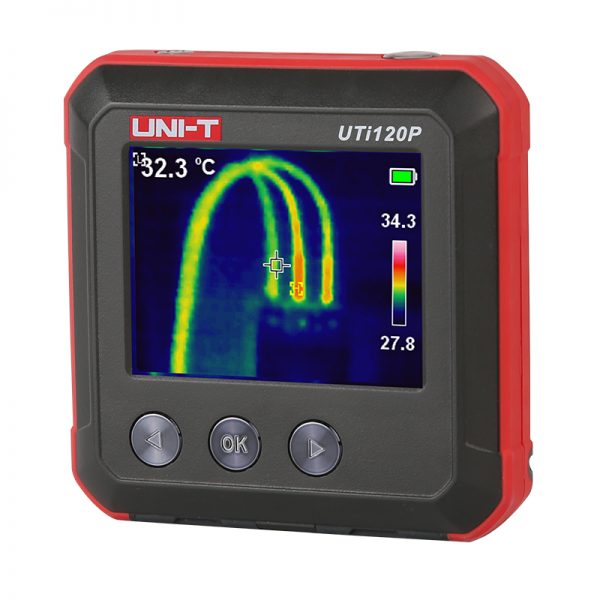

UTi120P Portable Thermal Imager

The UTi120P makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 120 -90 pixel thermal sensor, which provides great image performance. The large LCD displays unseen hot and cold spots for instant troubleshooting. Users can directly see High and low temperature point or area when imager inspect the objective. The UTi120P is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly transfer the video information to PC by software.
Applications:
UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.
Features:
1. Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
2. Adjustable emissivity from 0.10 to 0.99
3. Store and share images with optional microSD Card
4. Measure temperature range from -20°C to 400°C
5. Select color from total 6 palettes to best capture the event
6. 1m drop proof
  • UTi120P Portable Thermal Imager

    Request a Call Back

    •   Size Guide

      Size Guide

        Size Chest Waist Hips
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42
        2XL 44 38 44

        All measurements are in INCHES

        and may vary a half inch in either direction.

        Size Chest Waist Hips
        2XS 32 26 32
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42

        All measurements are in INCHES

        and may vary a half inch in either direction.

        Size Chest Waist Hips
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42
        2XL 44 38 44

        All measurements are in INCHES

        and may vary a half inch in either direction.

      •  Delivery & Return

        Delivery

        We ship to all 50 states, Washington DC.
        All orders are shipped with a UPS tracking number.
        Always free shipping for orders over US $200.
        During sale periods and promotions the delivery time may be longer than normal.

        Return

        Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

        Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
        Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

        Help

        Give us a shout if you have any other questions and/or concerns.
        Email: [email protected]
        Phone: +1 (23) 456 789

      •  Ask a Question

        UTi120P Portable Thermal Imager

        Ask a Question

          ... people are viewing this right now

          Share
        Guaranteed Safe CheckoutTrust
        The UTi120P makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 120 – 90 pixel thermal sensor, which provides great image performance. The large LCD displays unseen hot and cold spots for instant troubleshooting. Users can directly see High and low temperature point or area when imager inspect the objective. The UTi120P is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly transfer the video information to PC by software.
        Applications:
        UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.
        Features:
        1. Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
        2. Adjustable emissivity from 0.10 to 0.99
        3. Store and share images with optional microSD Card
        4. Measure temperature range from -20°C to 400°C
        5. Select color from total 6 palettes to best capture the event
        6. 1m drop proof

        Tech. Specifications:

        Specifications UTi120P
        Certification CE, RoHS
        IR resolution 120 x 90 pixels
        Field of view (FOV) 51° x 38
        Thermal sensitivity (NETD) ¼60mk
        Temperature range -20~400
        Spatial resolution (IFOV) 7.3mrad
        Frame rate 25Hz
        Measurement accuracy ±2% whichever is greater
        Palettes 3
        Emissivity Adjustable (0.01-1.00)
        Focus Focus free
        Display modes Thermal
        Display TFT LCD
        Auto capture of Hi/Lo temperature
        Measurement modes Point, area
        PC analysis software
        Drop proof 1m
        General Characteristics
        Power Li-ion battery (3.7V 1300mAh);
        Product net weight 125g
        Product size 76mm x 76 mm x 22mm
        Standard accessories Carrying bag, micro USB cable, micro SD card, English manual
        Standard individual packing Blister, gift box
        Standard quantity per carton 5pcs
        Standard carton measurement 390mm x 130mm x 140mm
        Standard carton gross weight 2.8kg
