TOA SC-610 Paging Horn Speaker
ated Input | 10 W (Mobile Mount use: 5 W) |
---|---|
Rated Impedance | 8 Ω |
Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
Frequency Response | 315 Hz – 12.5 kHz |
Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) | -22 dB at 1 kHz |
Dust/Water Protection | IP65 |
Polarity | Hot: Black , Com: White |
Operating Temperature | -20 ℃ to +55 ℃ (must be free from dew condensation) |
Finish | Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length) |
Dimensions | 222 (W) × 179 (H) × 234 (D) mm |
Weight | 1.1 kg |
Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
TOA SC-610 Paging Horn Speaker
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.
Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question
TOA SC-610 Paging Horn Speaker
Ask a Question

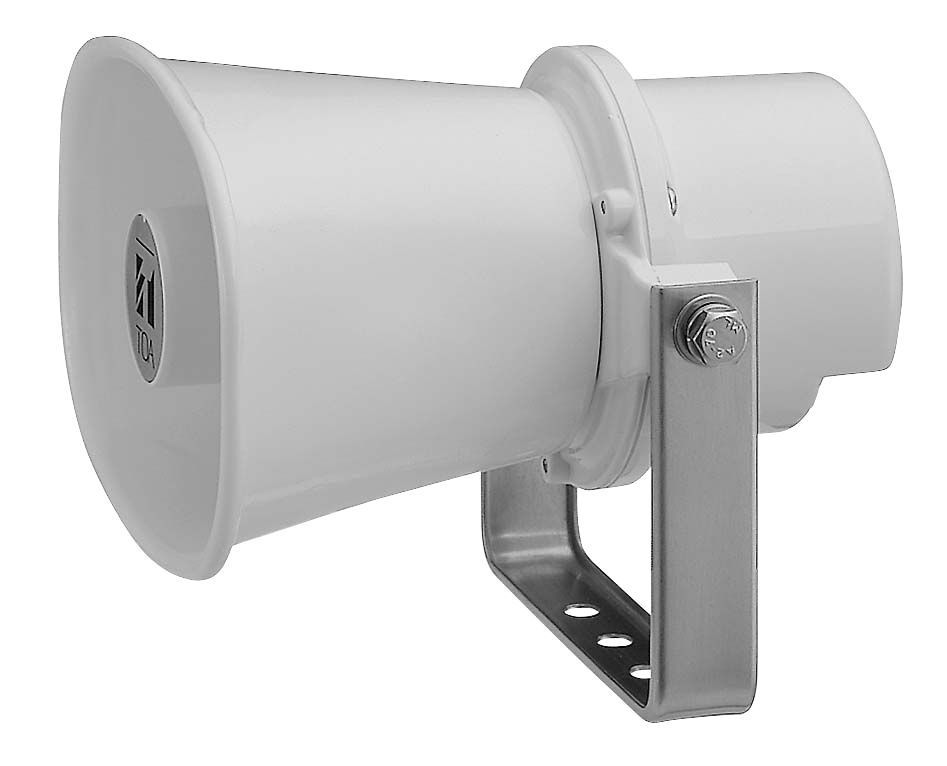

The SC-610 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit’s weatherproof capability.
- Very rugged speaker with durable construction ensures long term reliable operation
- High-quality sound
- Very high SPL
- Easy impedance selection through the switch
- Low impedance 8
- Shock-resistant oval horn
Specifications:
- Brand: TOA
- Model: SC-610
- Rated Input: 10 W (Mobile Mount use: 5 W)
- Rated Impedance: 8
- Sound Pressure Level: 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
- Frequency Response: 315 Hz – 12.5 kHz
- Dust/Water Protection: IP65
- Polarity Hot: Black, Com: White
- Operating Temperature: -20 o 55 (must be free from dew condensation)
- Finish: Horn flare-: Aluminum, off-white, powder coating; Reflector horn and rear cover-: ABS resin, off-white; Bracket, screws & bolts-: Stainless steel; Speaker cable-: Polyvinyl chloride insulated capture cable (6 mm in diameter, 600 mm in length);
- Dimensions :172 (W) — 161 (H) — 188 (D) mm
- Weight: 1 kg
- Option: Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
Based on 0 reviews
|
|
0% |
|
|
0% |
|
|
0% |
|
|
0% |
|
|
0% |
- Alpha Trade Bangladesh
- alpha trade bd
- Audio Visual
- Bangladesh.
- BD.
- Cable Lockout
- Circuit Breaker Lockout
- Dhaka
- Digital Multimeter in Bangladesh
- Electrical Lockout
- Electrical Power Testers
- Environmental Testers
- eye safety
- Eye Wash in bangladesh
- Eye Wash Station
- Eye Wash Station Bangladesh
- Fall Arrester
- Fall Arrester Harness
- Fall Arrest System
- Fall Protection System
- HEARING PROTECTION
- Industrial Clamp Meter
- industrial digital multimeters
- industrial grade multimeters
- Industrial Meters
- Infrared Thermometer in Bangladesh
- Lockout HASP
- Lockout Station & Others
- Lockout Tag
- Lockout Tagout (LOTO)
- Lockout Tagout(LOTO) Supplier in Bangladesh
- Lockout Tagout Procedure
- Loto Lockout Station BD
- Portable Eye Wash Station BD
- Portable Eye Wash Station in Bangladesh
- Respirator Mask in Bangladesh
- Respirator masks
- Respiratory protection
- Road Safety
- Safety Padlock
- Safety Shoe Supplier in Bangladesh
- Safety Spectacle
- Security Metal Detector
- Thermal Imager
- Valve Lockout
Related Products
Specifications:
DM-1300 | |
---|---|
Frequency response | 70 Hz – 15 kHz |
Connection | 3-pin XLR jack |
Rated impedance | 600 Ω |
Controls | Talk switch: Short-off type, slide on/off switch |
Microphone type. | Dynamic microphone |
Directivity | Unidirectional |
Microphone sensitivity | -54 dB (1 kHz 0 dB = 1 V/Pa) |
Dimensions. | 51 x 170 mm (Ø x D) |
Finish. | Zinc, die-cast, paint, grey metallic |
Accessory (included) | Microphone holder |
Specifications:
- Brand: TOA
- Model: DM-1100
- Type: Moving coil microphone
- Directivity: Unidirectional
- Rated Impedance: 600 unbalanced
- Rated Sensitivity: -55 dB (1 kHz 0 dB=1 V/Pa)
- Frequency Response: 100 Hz 12 kHz
- Connection Cable: Single-core shielded cable
- Cable Length: 7.5 m
- Terminal of Cable: Phone plug
- Talk Switch: Short-off, slide switch
- Finish: Body-: Die-cast aluminum, black; Head-: ABS resin/zinc-plated steel wire, black
- Dimensions: 178 mm (microphone body)
- Weight: 155 g (without connection cable)
- Accessory: Microphone holder (U5/16, NS5/8)
Model No | 947BIO |
---|---|
Color | Red |
UPC | 048441222636 |
Gallon Capacity | 14 |
Liter Capacity | 53 |
Material Specifications | High-Density-Polyethylene |
Dimensions, Exterior | 22W x 18D x 21H |
Pallet Quantity | 18 |
Net Weight, lbs | 16 |
Net Weight, kgs | 7.26 |
FM Approval | Yes |
OSHA Compliance | Yes |
Complies with NFPA Code 30 | Yes |

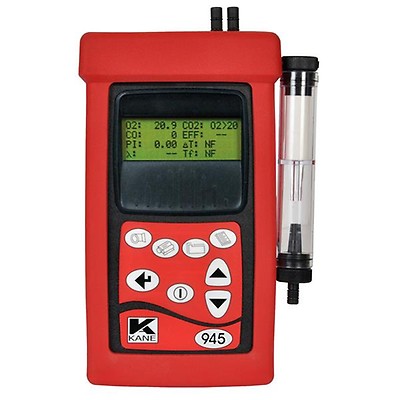

Features
|
Standard Fuel Types Selectable:
- Natural Gas
- Butane
- Propane
- LPG
- 28-sec oil
- 35-sec oil
- Heavy oil
- Solid fuel
- User fuel
- *Further types can be added by inputting calorific values
Features
- Stores 150 sets of test results
- Handset 220mm x 55mm x 120mm, weight 1kg
- Probe length 240mm x diameter 8mm with 285mm long stainless steel shaft. Type K thermocouple supplied with 1.5m long neoprene hose
Absorbent Pads
Absorbent Socks
Absorbent Pillows
Nitrile Gloves
Safety glasses
Spill Response Guide
Disposal Bags
Dustpan
Nylon Bag
- Brand: TOA
- Model: TH-650
- Applicable Drivers: TU-631, TU-631M, TU-651, TU-651M
- Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with a driver.)
- Frequency Response: 200 Hz – 6 kHz (When operated with a driver.)
- Dust/Water Protection: IP65 (When operated with a driver.)
- Driver Coupling: 1 – 3/8 18 threads (inch screw)
- Operating Temperature: -20 to 55 (must be free from dew condensation)

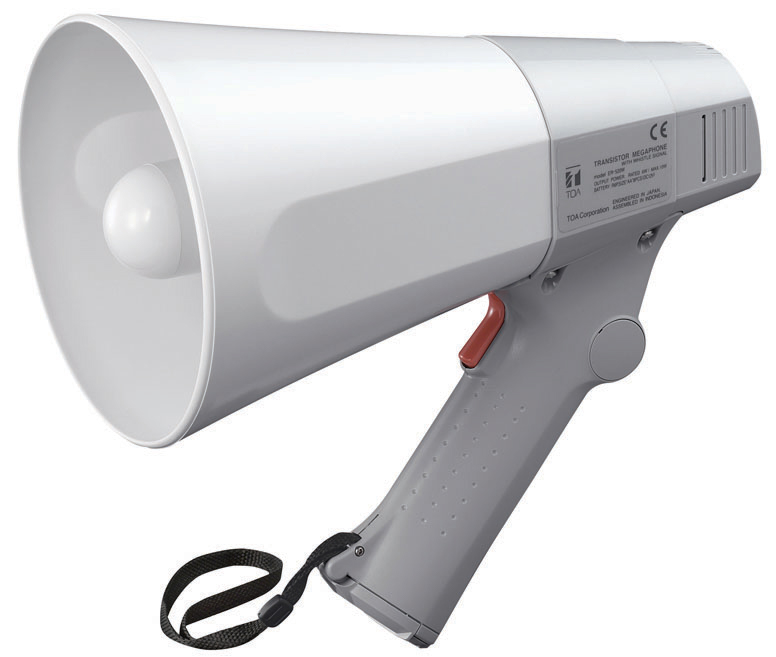

Specifications:
- Power Source: R6P (AA) — 8 (12 V DC)
- Rated Output: 6 W
- Maximum Output: 10 W
- Battery Life: Approx. 10 hours (JEITA)*
- Audible Range: (City areas) Approx. 250 m (JEITA)*
- Diaphragm: Polyimide film
- Operating Temperature: -10 to 40
- Finish: Horn-: ABS resin, light gray; Strap-: Tenoroon, black; Handle, mouth, and others-: ABS resin, gray;
- Dimensions: 160 (W) — 256 (H) — 260 (D) mm
- Weight: 620 g (without batteries)
Specifications:
- Brand: TOA
- Model: TU-660
- Applicable Horns: TH-650, TH-660
- Rated Input: 60 W
- Rated Impedance: 16 Ω
- Sensitivity: 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
- Frequency Response: 150 Hz – 8 kHz (When operated with JIS C 5504 standard horn.)
- Dust/Water Protection: IP65 (When a driver is operated with a horn.)
- Horn Coupling: 1 – 3/8 18 threads (inch screw)
- Polarity: Hot-: Black, Com-: White
- Operating Temperature: -20 ℃ to 55 ℃ (-4 ゜F to 131 ゜F) (no condensation)
- Finish: Flange-: Aluminum, gray, powder coating; Rear cover-: ABS resin, gray; Screws-: Stainless steel; Speaker cable-: Polyvinyl chloride insulated cabtyre cable (6 mm (0.24″) in diameter, 600 mm (23.62″) in length)
- Dimensions: φ139 × 109 (D) mm (φ5.47″ × 4.29″)
- Weight: 2 kg (4.41 lb)
- Option: Driver unit cover: UC-200A
- Matching transformer: TM-30T, TM-60T

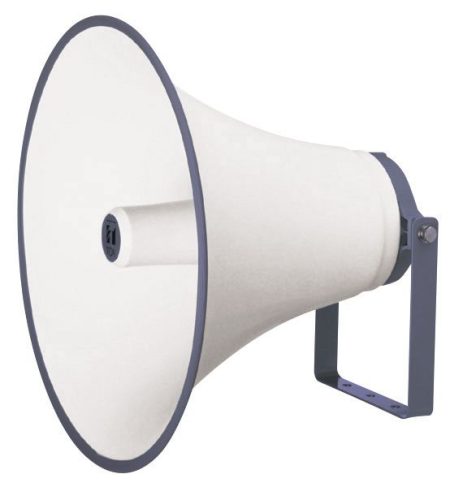

Specifications:
- Brand: TOA
- Model: TH-650
- Applicable Drivers: TU-631, TU-631M, TU-651, TU-651M
- Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with a driver.)
- Frequency Response: 200 Hz – 6 kHz (When operated with a driver.)
- Dust/Water Protection: IP65 (When operated with a driver.)
- Driver Coupling: 1 – 3/8 18 threads (inch screw)
- Operating Temperature: -20 ℃ to 55 ℃ (must be free from dew condensation)
- Finish: Horn flare and flange-: Aluminum, off-white, powder coating; Reflector horn-: ABS resin, off-white; Bracket holder-: Aluminum, gray, powder coating; Bracket-: Steel, gray, powder coating; Screws and bolts-: Stainless steel;
- Dimensions: Æ500 × 394 (D) mm
- Weight: 2.9 kg

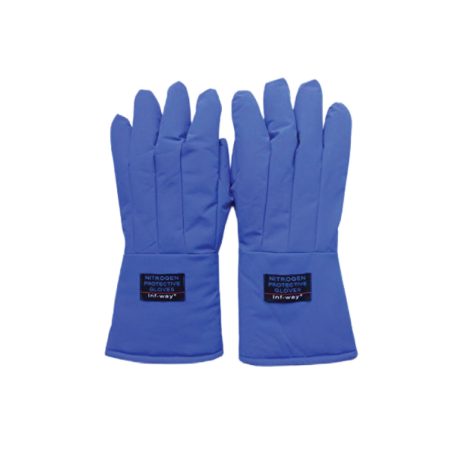

- Cryogenic protection for ultra-cold applications down to -196°C (-320°F)
- State-of-the art materials and a multi-layered construction allow for a maximum level of thermal protection, flexibility, and dexterity which are essential features when function is important and safety is critical
- High performance, thermal inner lining wicks moisture away from hands, maintaining comfort over extended periods
- Safety certified to meet EU standards for CE Cat. III: EN 511, EN 388, EN 420

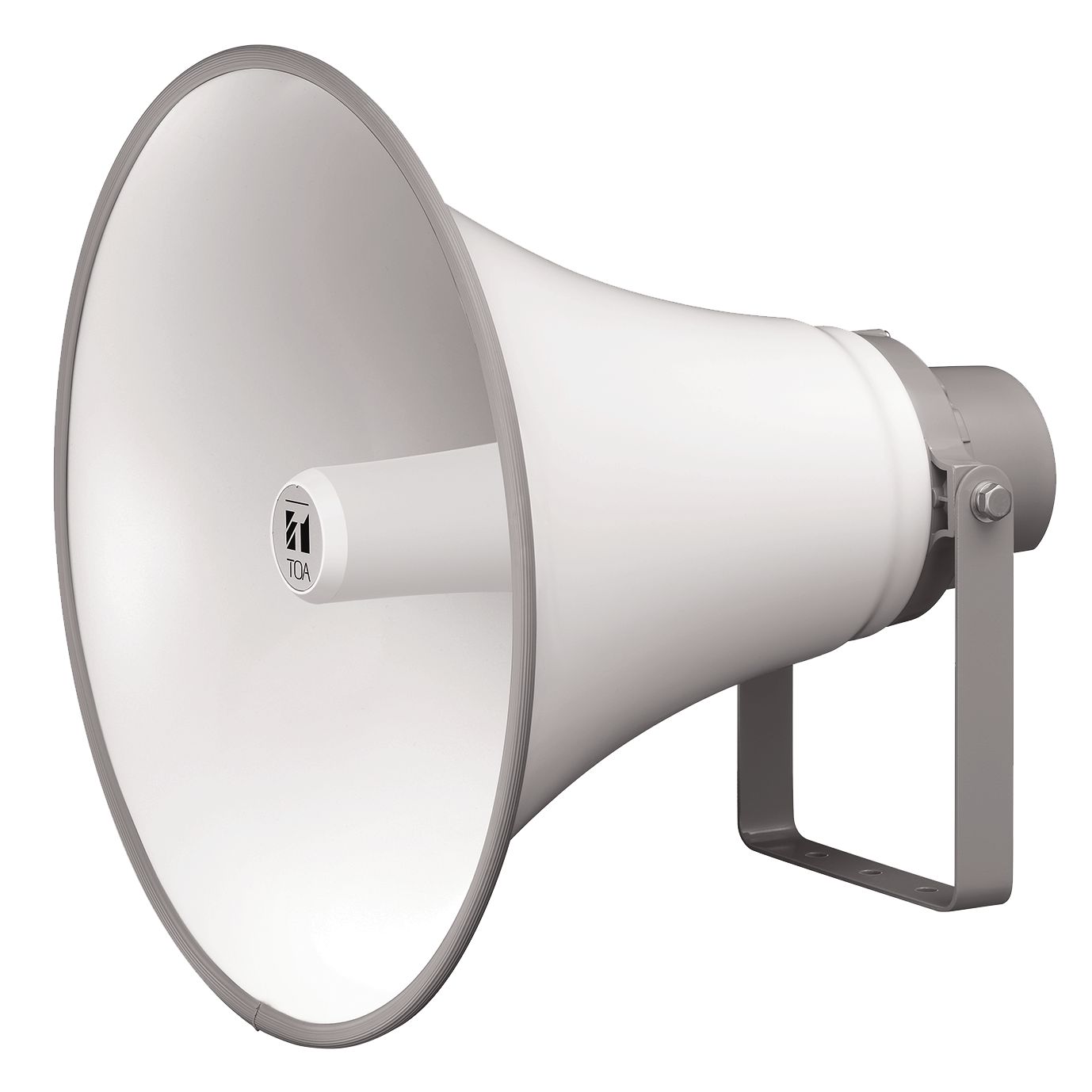

- Brand: TOA
