TOA Electronics ER-520 Hand Grip Type Megaphone
Specifications:
- Power Source: R6P (AA) — 8 (12 V DC)
- Rated Output: 6 W
- Maximum Output: 10 W
- Battery Life: Approx. 10 hours (JEITA)*
- Audible Range: (City areas) Approx. 250 m (JEITA)*
- Diaphragm: Polyimide film
- Operating Temperature: -10 to 40
- Finish: Horn-: ABS resin, light gray; Strap-: Tenoroon, black; Handle, mouth, and others-: ABS resin, gray;
- Dimensions: 160 (W) — 256 (H) — 260 (D) mm
- Weight: 620 g (without batteries)
... people are viewing this right now

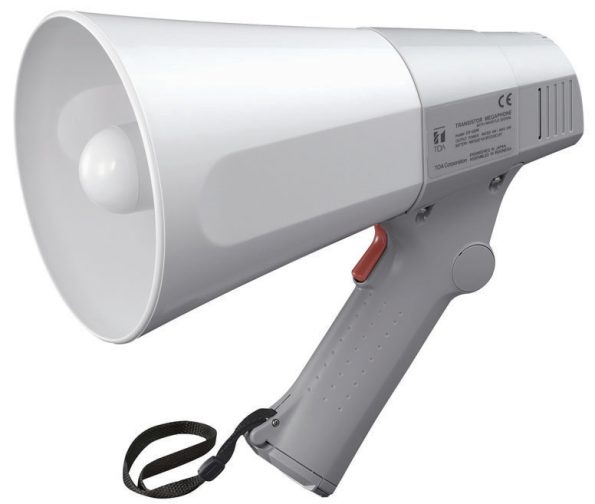

TOA Electronics ER-520 Hand Grip Type Megaphone
TOA Electronics ER-520 is Small in size and light in weight, the ER-520W megaphone can be easily carried by a single hand. It can also provide a whistle tone. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.
Features:
- Compact, light-weight, and easy-to-operate
- Incorporated with Whistle
- Audible range up to 250m for voice and 315m for whistle (JEITA Standard)
- Incorporated with anti-bacterial treatment
- Excellent battery life
- Ideal for schools, government organization facilities, factories, and many others.
Specifications:
- Power Source: R6P (AA) × 8 (12 V DC)
- Rated Output: 6 W
- Maximum Output: 10 W
- Battery Life: Approx. 10 hours (JEITA)*
- Audible Range: (City areas) Approx. 250 m (JEITA)*
- Diaphragm: Polyimide film
- Operating Temperature: -10 to 40
- Finish: Horn-: ABS resin, light gray; Strap-: Tenoroon, black; Handle, mouth, and others-: ABS resin, gray;
- Dimensions: 160 (W) — 256 (H) — 260 (D) mm
- Weight: 620 g (without batteries)
