DM-1300 Unidirectional Dynamic Microphone
Specifications:
| DM-1300 | |
|---|---|
| Frequency response | 70 Hz – 15 kHz |
| Connection | 3-pin XLR jack |
| Rated impedance | 600 Ω |
| Controls | Talk switch: Short-off type, slide on/off switch |
| Microphone type. | Dynamic microphone |
| Directivity | Unidirectional |
| Microphone sensitivity | -54 dB (1 kHz 0 dB = 1 V/Pa) |
| Dimensions. | 51 x 170 mm (Ø x D) |
| Finish. | Zinc, die-cast, paint, grey metallic |
| Accessory (included) | Microphone holder |
... people are viewing this right now
DM-1300 Unidirectional Dynamic Microphone
The DM-1300 is a Unidirectional Dynamic Microphone suited to both vocal and speech applications.
- Switching and handling noise suppression With (balanced) XLR-connector
- 10 m cable with an (unbalanced) phone plug
- Adapter for stand mounting is provided
Specifications:
- Type: Moving coil microphone
- Directivity: Unidirectional
- Rated Impedance: 600 , balanced
- Rated Sensitivity: -54 dB (1 kHz 0 dB=1 V/Pa)
- Frequency Response: 70 – 15,000 Hz
- Connection Cables: Single-core shielded cable, unbalanced
- Cable Length: 10 m
- Terminal of Cable: Phone plug
- Talk Switch: Short-off, slide switch
- Finish: Body-: Die-cast zinc, metallic gray, paint; Head-: Steel/zinc-plated steel wire, metallic gray, paint;
- Dimensions: †51 — 170 mm (without connection cable)
- Weight: 245 g (without connection cable)
- Accessory: Microphone holder (U5/16)
Related Products
TOA PM-660 Paging Microphone Read more
TOA PM-660 Paging Microphone is Designed for paging calls and general announcements, the PM-660 desk-top microphone comes with a large talk switch and a lock lever for easy and convenient operation.
- Short-off talk switch with locking lever or open off type switch contact
- Low handling noise
- 2,5 m cable with a phone plug
TOA SC-610 Paging Horn Speaker
Read more
| ated Input | 10 W (Mobile Mount use: 5 W) |
|---|---|
| Rated Impedance | 8 Ω |
| Sound Pressure Level | 110 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level) |
| Frequency Response | 315 Hz – 12.5 kHz |
| Sensitivity when used as Microphone 2 (0 dB=1 mW/10 dynes/cm ) | -22 dB at 1 kHz |
| Dust/Water Protection | IP65 |
| Polarity | Hot: Black , Com: White |
| Operating Temperature | -20 ℃ to +55 ℃ (must be free from dew condensation) |
| Finish | Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length) |
| Dimensions | 222 (W) × 179 (H) × 234 (D) mm |
| Weight | 1.1 kg |
| Option | Swivel bracket: YS-151S (Can be used instead of the supplied bracket.) |
TH-650 Reflex Horn Speaker Read more
- Brand: TOA
- Model: TH-650
- Applicable Drivers: TU-631, TU-631M, TU-651, TU-651M
- Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with a driver.)
- Frequency Response: 200 Hz – 6 kHz (When operated with a driver.)
- Dust/Water Protection: IP65 (When operated with a driver.)
- Driver Coupling: 1 – 3/8 18 threads (inch screw)
- Operating Temperature: -20 to 55 (must be free from dew condensation)

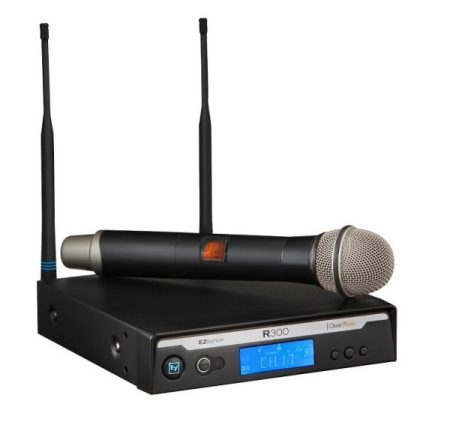

R300-HD Handheld system with PL22 Dynamic Wireless Microphone Read more
