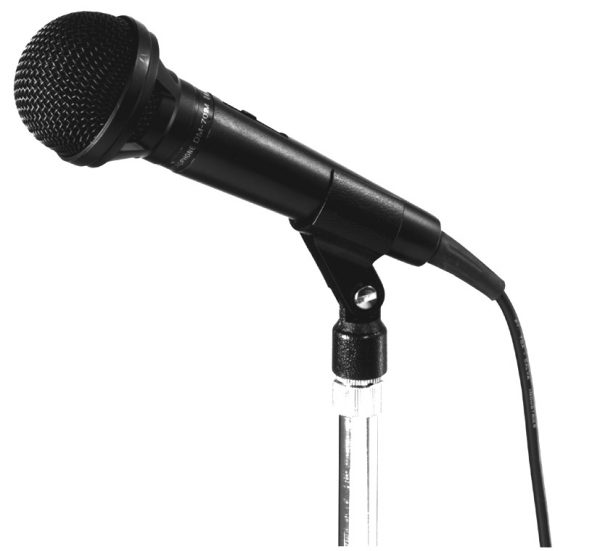

DM-1100 Unidirectional Dynamic Microphone
Specifications:
- Brand: TOA
- Model: DM-1100
- Type: Moving coil microphone
- Directivity: Unidirectional
- Rated Impedance: 600 unbalanced
- Rated Sensitivity: -55 dB (1 kHz 0 dB=1 V/Pa)
- Frequency Response: 100 Hz 12 kHz
- Connection Cable: Single-core shielded cable
- Cable Length: 7.5 m
- Terminal of Cable: Phone plug
- Talk Switch: Short-off, slide switch
- Finish: Body-: Die-cast aluminum, black; Head-: ABS resin/zinc-plated steel wire, black
- Dimensions: 178 mm (microphone body)
- Weight: 155 g (without connection cable)
- Accessory: Microphone holder (U5/16, NS5/8)
DM-1100 Unidirectional Dynamic Microphone
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question
DM-1100 Unidirectional Dynamic Microphone
Ask a Question
DM-1100 Unidirectional Dynamic Microphone
The DM-1100 is a multi-purpose unidirectional dynamic microphone featuring high intelligibility.
- Switching and handling noise suppression
- 7.5 m cable with phone plug
Specifications:
- Brand: TOA
- Model: DM-1100
- Type: Moving coil microphone
- Directivity: Unidirectional
- Rated Impedance: 600 , unbalanced
- Rated Sensitivity: -55 dB (1 kHz 0 dB=1 V/Pa)
- Frequency Response: 100 Hz 12 kHz
- Connection Cable: Single-core shielded cable
- Cable Length: 7.5 m
- Terminal of Cable: Phone plug
- Talk Switch: Short-off, slide switch
- Finish: Body-: Die-cast aluminum, black; Head-: ABS resin/zinc-plated steel wire, black
- Dimensions: 178 mm (microphone body)
- Weight: 155 g (without connection cable)
- Accessory: Microphone holder (U5/16, NS5/8)
