Features :

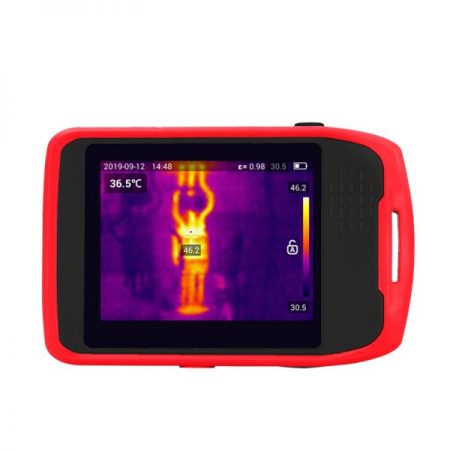

- UTi120P Portable Thermal ImagerRead moreThe UTi120P makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 120 -90 pixel thermal sensor, which provides great image performance. The large LCD displays unseen hot and cold spots for instant troubleshooting. Users can directly see High and low temperature point or area when imager inspect the objective. The UTi120P is an affordable inspection tool for electrical/mechanical, building, and maintenance applications. Directly transfer the video information to PC by software.Applications:UTi120P is widely used in HVAC equipment maintenance, automotive manufacturing, chemical and smelting industries, etc.Features:1. Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
2. Adjustable emissivity from 0.10 to 0.99
3. Store and share images with optional microSD Card
4. Measure temperature range from -20°C to 400°C
5. Select color from total 6 palettes to best capture the event
6. 1m drop proof - UTi120T Portable Thermal ImagerRead more
Specifications
Model UTi120T IR resolution 120-90 pixels Field of view (FOV) 50-38° Thermal sensitivity (NETD) 60mk Temperature range -20~400 Spatial resolution (IFOV) 7.6mrad Frame rate 25Hz/9Hz Measurement accuracy ±2 or±2% whichever is greater Focus Focus free Digital zoom Display modes Thermal, image blending, visible light Display 3.5 LCD - UTi165K Thermal ImagerRead more
Features:
* Measurement Range: 30℃ ~45℃(℃ and ℉ switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Contactless Measuring: 15cm-100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output
* Tripod mounting hole(1/4 inch) - UTi192M Thermal ImagerRead more
Features:
* Measurement Range: 30℃ ~45℃(℃ and ℉ switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Contactless Measuring: 15cm-100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output - UTi220K Thermal ImagerRead more
- Durable and user-friendly
- IR resolution: 200×150
- 8” TFT display screen (320×240 Pixels)
- Temperature measurement range: 30℃ to 45℃
- Auto alarm for high temperature
- Image modess: Thermal,Visual image,Fusion
- Color palattes: 7(Ironbow, Rainbow, White hot, Black hot, Tyrian, Amber, Cool)
- PC software analysis
- UTi260K Thermal ImagerRead more
- Durable and user-friendly
- IR resolution: 256×192
- 8” TFT display screen (320×240 Pixels)
- Temperature measurement range: 30℃ to 45℃
- Auto alarm for high temperature
- Image modes: Thermal, Visual image, Fusion
- Color palates: 7(Iron bow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
- PC software analysis
- Real-time image projection
- UTi384M Thermal ImagerRead more
Features :
- 4” Touch display screen (480×800 Pixels)
- IR resolution: 384×288
- Temperature measurement range: -20℃ to 650℃ , external lens up to 1500℃ / -4℉ to 1202 ℉, external lens up to 2732℉
- Interchangeable lens (Optional Telephoto lens / High Temp lens)
- Manual focus
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: 5 Points/2 Lines/5 Rectangles/5 Circles
- Image capture
- UTi640C Thermal ImagerRead more
Features :
- 5” touch display screen (1280×720 Pixels)
- Flexible flip display screen
- IR resolution: 640×480
- Temperature measurement range: -40℃ to 800℃ , external lens up to 2000℃ / -40℉ to 1472 ℉, external lens up to 3632℉
- Interchangeable lens (Optional Telephoto lens / High Temp lens)
- Electric/manual Focus
- 70 degrees rotating optical lens part
- 4” Viewfinder (1280*960 LCOS display screen)
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: Point 10/Line 5/Rectangle 5/Circle 5
- Image capture
- Video recording
- Voice recording
- UTi80P Portable Thermal ImagerRead more
Features :
- Mini and portable
- 2.4” TFT display screen (320×240 Pixels)
- IR resolution: 80×60
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 3(Iron, Rainbow, Grey)
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- 1m drop proof
- UTi85H+ Thermal ImagerRead more
Features:
1. Region of interest mode (ROI)
2. Real-time image transmission
3. High/low temperatures measurement
4. Adjustable emissivity
5. Storage card
6. Alarm buzzer
7. High temperature alarm
8. Flashlight
9. Type-C USB port for charging and data transmission
HI/LO Temperature Alarm:
Central point temperature measurement, high/low temperature auto tracking and real-time temperature display.
